Architectural Lighting Design with Shadows: Mastering Light Contrast through LED Spotlights

How modern LEDs shape depth, drama, and visual hierarchy in architectural spaces

Architectural spaces are defined not only by materials and geometry, but by how light interacts with them. And among all lighting techniques, shadows are the most underestimated design tool. When controlled well, shadows bring depth, guide attention, reveal texture, and elevate spaces from “lit” to “designed.”

Today, LED spotlights—with precise beam angles, advanced optics, and high CRI performance—give lighting designers unprecedented control over contrast and shadow modeling. This article unpacks how shadows work, how LED technology shapes them, and how professionals can use contrast to create premium architectural experiences.

Why Shadows Matter in Architectural Lighting

Many lighting plans focus on lux levels, but lux alone cannot create atmosphere. Shadows create hierarchy and meaning.

What shadows contribute to a space

• Depth: Objects appear dimensional, not flat

• Texture definition: Stone, concrete, fabric, and wood gain tactile presence

• Visual hierarchy: Light draws attention; shadow reduces noise

• Mood & drama: Contrast shapes emotional tone

• Architectural storytelling: Highlights structure, recesses, rhythm

Without shadows, spaces feel flat, overlit, and without identity. With controlled shadowing, the same space feels curated and intentional.

The Science Behind Shadows: How Light Behaves

To design shadows, you must understand the physics.

1. Beam angle determines shadow sharpness

• Narrow beams (10°–15°):
  Produce high-contrast, crisp-edged shadows
  Ideal for sculptures, textured walls, feature elements

Medium beams (24°–36°):
Balanced shadows, softer edges
Good for living rooms, hotel lobbies, retail highlights

• Wide beams (60°–120°):
  Minimal shadows; used for ambient illumination

2. Distance affects shadow scale

• Close to an object → small, sharp shadow

• Far from an object → larger, softer shadow

3. Surface texture changes shadow clarity

• Smooth marble: crisp shadow edges

• Wood grain: shadows reveal depth in the texture

• Concrete: creates organic shadow gradients

• Fabric: absorbs edges and reduces contrast

4. Reflectance of materials

Higher reflectance = weaker shadows
Lower reflectance = stronger shadows

Examples:

• White wall → subtle shadows

• Grey/stone wall → medium contrast

• Dark textured wall → dramatic shadows

5. CCT & CRI influence the emotional tone

• 2700–3000K: warm and intimate shadow gradients

• 3500K: neutral commercial tone

• 4000–5000K: crisp, high-definition shadows

• CRI ≥ 90: accurate detailing on materials

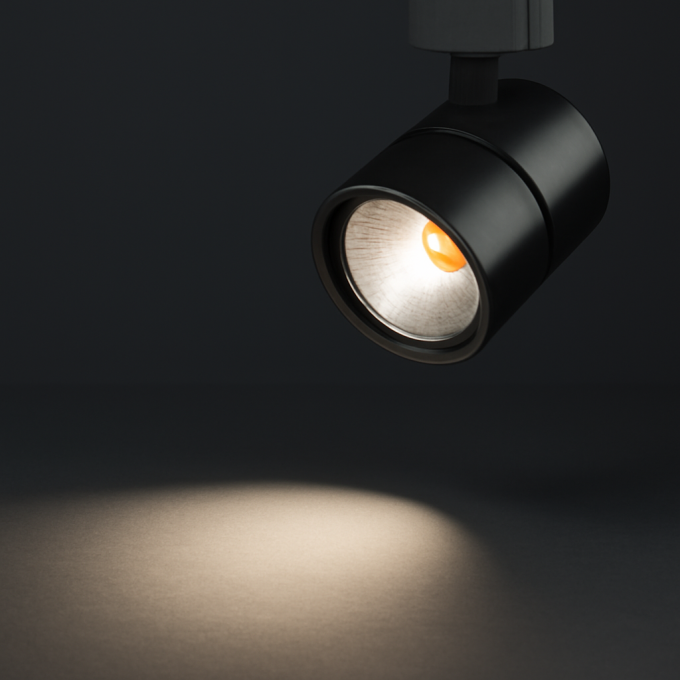

How LED Spotlights Transform Shadow Control

Traditional halogen spotlights created beautiful shadows but lacked consistency and efficiency. LEDs now outperform them through optical precision and stability.

1. Precise LED optics

Modern LEDs use:

• TIR lenses

• Hybrid reflectors

• Faceted optical cups

These deliver:

• Tight beam tolerance (
